Zemismart Tuya WiFi motor HomeKit for electric curtain rails + remote control

Open or close the curtains with a telephone or remote control. Very quiet engine even at night. A perfect solution for every window. New model compatible with Apple Homekit.

Tax included Dostawa: 1 dzień
  Safe shopping
  Immediate dispatch
  14 days for return

New model compatible with Apple HomeKit

The Zemismart Tuya WiFi Apple Homekit motor in a set with a remote control and a set of adapters for automatic curtains powered from the network is a perfect solution for your bedroom, living room and children's room. Thanks to this motor, in conjunction with a dedicated rail, you can reveal and cover the windows with your traditional fabric curtains.

You can open the curtains at any time and degree. Regulate the amount of sunlight in your home comfortably from your armchair or couch using a phone or a remote control (included).

It does not require a gateway, works directly via a WiFi network with the Tuya cloud and is compatible with Apple HomeKit (certified device).

The most important features

  • Quiet work
  • Automatic calibration - the engine automatically remembers the 0 and 100% window positions
  • Percentage veil

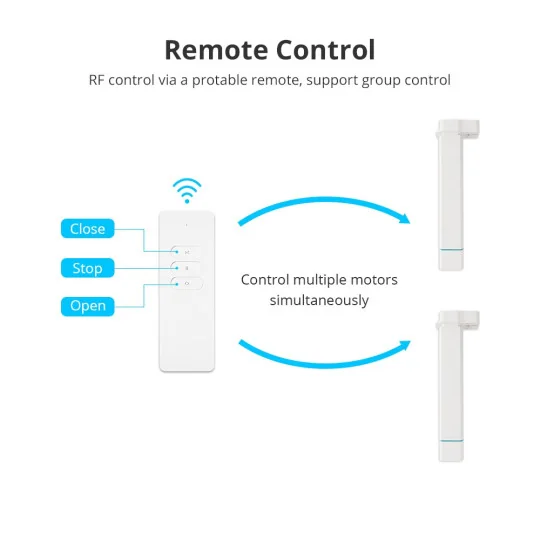

  • Remote control control
  • Control from the application
  • Schedules to reveal and shade the window at a specified time


  • Powered: AC 110 - 240 V 50/60 Hz
  • Dimensions: 53 x 53 x 315 mm
  • Weight: 900 g
  • Temp. working: -10 ℃ ~ + 50 ℃
  • Operating humidity : 10 - 90% RH, non-condensing
  • Communication protocol : WiFi 2.4
  • Power: 45 W, motor power 1.2 Nm
  • Speed: 16 cm / sec


To add the engine to the Tuya application, follow the instructions:

  1. Press the + icon and select Add Device
  2. Select small devices from the device groups
  3. Select Curtains (WiFi) from the devices in the group
  4. Put the motor in pairing mode by pressing the reset button 3 times , then immediately press and hold for a few seconds until the LED flashes quickly.
  5. Then follow the instructions on the phone screen.
  6. The Tuya application will also add the device to the Apple DOM application.

You can also add the device right away to the home app. To add the engine to the Apple DOM application, scan the QR code from the device.


Data sheet

48 x 70 x 340 mm
Working temperature
Working humidity
10 - 90% RH, bez kondensacji
Communication protocol
Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
45 W, siła silnika 1.2 Nm
AC 110 - 240 V 50/60 Hz
Contents of the package
Silnik, kabel zasilający, pilot zdalnego sterowania
1.05 kg
MAX speed
14 cm/s
Maximum load
50 kg
